TSN121K S Network Thermal Camera
Network Cameras
TSN121K S Network Thermal Camera
The infrared thermal imaging camera uses an uncooled focal plane vanadium oxide detector with extendable temperature measurement function. It has 1 analog video output and network signal, and supports H.264 and H.265 encoding. Compatible with digital security monitoring systems via ONVIF protocol.
Detection Range
- Human (1.7m)
- Up to 3100m (100mm lens)
- Vehicle (2.3m)
- Up to 9600m (100mm lens)
Key Features
- Customizable startup logo
- Customizable OSD icons
- Optimized image enhancement algorithm with clearer target edges
- Cross-platform support for Windows, Android, and iOS
- SDK development kits for Windows & Linux
- ONVIF compatible
- H.264/H.265 encoding support
- Temperature measurement function
- Network streaming via TCP/IP, RTSP
Technical Specifications
| NETD | ≤35mk@30°C |
|---|---|
| Pixels | 640×512 |
| Weight | 130g (without lens) |
| Network | 100M Ethernet |
| Encoding | H.264 / H.265 |

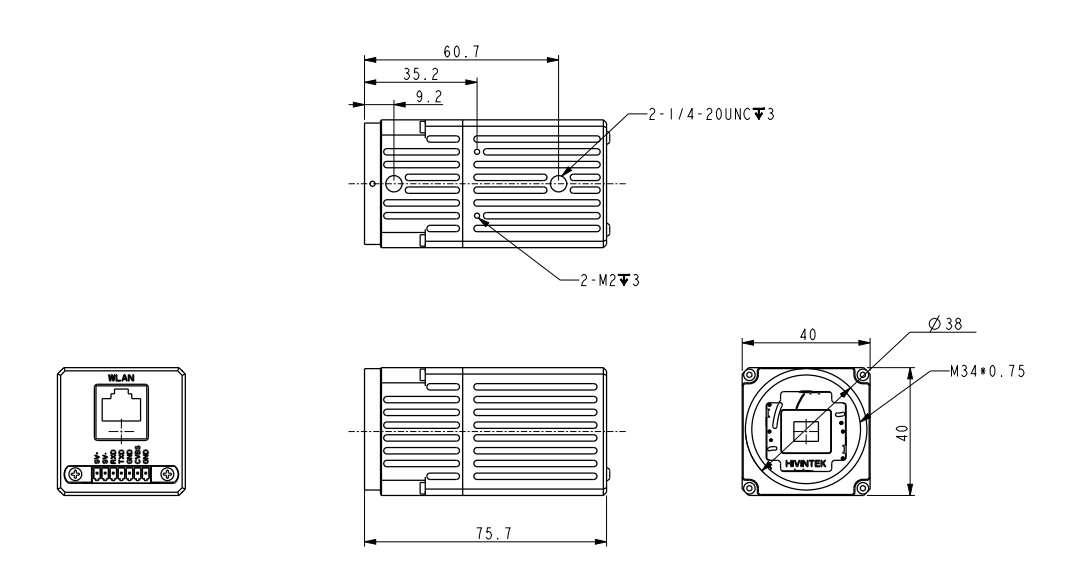

| Dimensions | 40mm × 40mm × 76mm (without lens) |
| Pixel Pitch | 12μm |
| Analog Video | CVBS 50Hz (PAL) / 60Hz (NTSC) |
| Detector Type | Uncooled Focal Plane |
| Spectral Range | 8~14μm |
| Operating Temp. | -20°C ~ +60°C |
| Working Voltage | DC 12V |
| Power Consumption | 1.8W |
| Temperature Range | -20°C~+120°C / -20°C~+350°C |
Technical support scope is confirmed according to order requirements. Specifications are subject to change without notice.
